TNC
|
Jack - Straight
|
Crimp
Browse for other connectors
▣
Product Overview
Part Number
TN10-0058-C06D
Series
TNC
Style
Jack - Straight
Description

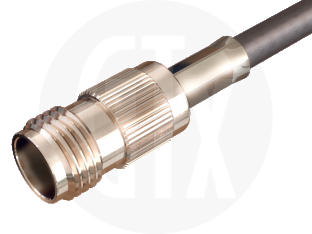

TNC Crimp Jack, Nickel Plated, RG58, LBC195, URM43
Primary Fixing
Crimp
▣
Specifications
Electrical
Dielectric Withstanding
1500 Volts RMS Maximum
Impedance
50 ohms
Interface Frequency
11 GHz
Working Voltage
500 Volts RMS Maximum
Environmental
RoHS Compliant
Yes
Temperature Range
-55 to +85 degrees C
Material
Body
Zinc Alloy, Nickel Plated
Contact
Brass, Gold Plated
Dielectric
Delrin
Ferrule
Brass, Nickel Plated
Mechanical
Cable Retention
Equal to breaking strain of cable
Durability
500 mating cycles
Fixing Method
Crimp
▣
Cable Preparation
A =
8.00mm
B =
4.00mm
C =
4.00mm
▣
Tooling
Crimp Die Sizes
1.69mm hex.
View tooling
5.41mm hex.
▣
Documents
Certificate of Conformance
REACH Policy and Statement
RoHS Certificate of Compliance
▣
Order
This product is no longer stocked.
For alternatives please see the part numbers listed below.
TN10-0058-C06
▣
Order
This product is no longer stocked.
For alternatives please see the part numbers listed below.
TN10-0058-C06
▣
