Product Overview

Part Number

MA17-240K-L04

Series

Style

Plug - Right Angle

Description

SMA Clamp Right Angle Plug, Stainless Steel, KF240

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1000 Volts RMS Maximum

Impedance

50 ohms

Insertion Loss

< 0.06 * sqrt (f.GHz) dB

Interface Frequency

18 GHz

VSWR

< 1.3 @ 18 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Passivated Stainless Steel

Dielectric

PTFE

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Mating Torque

0.79 to 1.13Nm

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	3
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£34.91 each
5 off	£27.93 each
10 off	£25.60 each
50 off	£23.27 each

▣

Order

UK stock	3
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£34.91 each
5 off	£27.93 each
10 off	£25.60 each
50 off	£23.27 each

▣

Product Overview

Part Number

MA17-240K-L04

Series

Style

Plug - Right Angle

Description

SMA Clamp Right Angle Plug, Stainless Steel, KF240

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1000 Volts RMS Maximum

Impedance

50 ohms

Insertion Loss

< 0.06 * sqrt (f.GHz) dB

Interface Frequency

18 GHz

VSWR

< 1.3 @ 18 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Passivated Stainless Steel

Dielectric

PTFE

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Mating Torque

0.79 to 1.13Nm

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

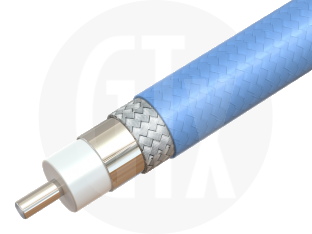

KF240, Flexible and Phase Stable Coaxial Cable, supplied in increments of 1 metre
