Product Overview

Part Number

HD15-4855-C06-Z

Series

HD BNC (Micro BNC)

Style

Plug - Straight

Description

HD BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, 4855R, L-2.5CHD

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Pin

Beryllium Copper, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Male

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.50mm
B =	2.50mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

034-1107-12G

194-3224

▣

Order

UK stock	111
Taiwan stock	2922
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£5.99 each
10 off	£4.78 each
50 off	£4.35 each
100 off	£4.13 each
300 off	£3.93 each

▣

Order

UK stock	111
Taiwan stock	2922
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£5.99 each
10 off	£4.78 each
50 off	£4.35 each
100 off	£4.13 each
300 off	£3.93 each

▣

Product Overview

Part Number

HD15-4855-C06-Z

Series

HD BNC (Micro BNC)

Style

Plug - Straight

Description

HD BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-M59 / M59XF, 4855R, L-2.5CHD

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Pin

Beryllium Copper, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Male

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.50mm
B =	2.50mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

034-1107-12G

194-3224

▣

Associated Products

◄

►

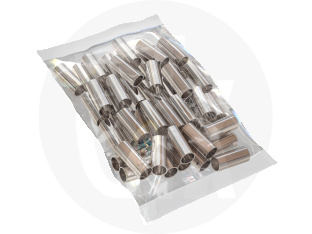

12.7MM Straight Ferrule 50pcs

FER-4855-6-12.7MM-50

Ferrule for HD15-4855-Z, Pack of 50 pieces

Strain Relief Boot

Strain Relief Boot for SDI-M59, 4.52mm Hex, Black

Strain Relief Boot

Strain Relief Boot for SDI-M59, 4.52mm Hex, Red

Strain Relief Boot

Strain Relief Boot for SDI-M59, 4.52mm Hex, Yellow

Strain Relief Boot

Strain Relief Boot for SDI-M59, 4.52mm Hex, Green

Strain Relief Boot

Strain Relief Boot for SDI-M59, 4.52mm Hex, Blue

Strain Relief Boot

Strain Relief Boot for SDI-M59, 4.52mm Hex, Violet

HD BNC Mounting Tool - Hand Tool for mating and unmating of HD BNC Plugs

6G-SDI Mini RG59 Digital Video Cable, 0.6/2.6, supplied on 305 metre drums

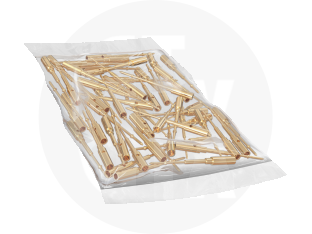

PIN-1694-HD-1-50
