Coaxial Connector HD02-4855-C06-Z - HD BNC 12G SDI Crimp Bulkhead Jack, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

Browse for other connectors

▣

Product Overview

Part Number

HD02-4855-C06-Z

Series

HD BNC (Micro BNC)

Style

Jack - Bulkhead

Description

HD BNC 12G SDI Crimp Bulkhead Jack, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Contact

Beryllium Copper, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Locknut

Brass, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Female

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.70mm
B =	2.10mm
C =	2.80mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

034-1046

Minor Variations

▣

Order

UK stock	0
Taiwan stock	689
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£5.25 each
10 off	£4.19 each
50 off	£3.81 each
100 off	£3.62 each
300 off	£3.45 each

▣

Order

UK stock	0
Taiwan stock	689
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£5.25 each
10 off	£4.19 each
50 off	£3.81 each
100 off	£3.62 each
300 off	£3.45 each

▣

Product Overview

Part Number

HD02-4855-C06-Z

Series

HD BNC (Micro BNC)

Style

Jack - Bulkhead

Description

HD BNC 12G SDI Crimp Bulkhead Jack, Nickel Plated, Gigatronix UHD75-M59 / M59XF, Belden 4855R

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Contact

Beryllium Copper, Gold Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Locknut

Brass, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Gender

Female

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.70mm
B =	2.10mm
C =	2.80mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

View tooling

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

Datasheet

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

034-1046

Minor Variations

▣

Associated Products

◄

►

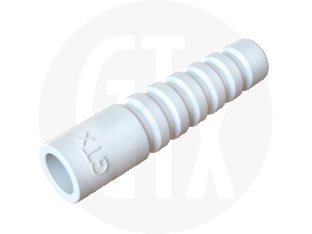

GSB-M59-0

Strain Relief Boot for SDI-M59, 4.52mm Hex, Black

GSB-M59-2

Strain Relief Boot for SDI-M59, 4.52mm Hex, Red

GSB-M59-4

Strain Relief Boot for SDI-M59, 4.52mm Hex, Yellow

GSB-M59-5

Strain Relief Boot for SDI-M59, 4.52mm Hex, Green

GSB-M59-6

Strain Relief Boot for SDI-M59, 4.52mm Hex, Blue

GSB-M59-7

Strain Relief Boot for SDI-M59, 4.52mm Hex, Violet

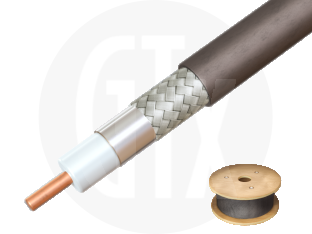

HD75-M59-305

6G-SDI Mini RG59 Digital Video Cable, 0.6/2.6, supplied on 305 metre drums

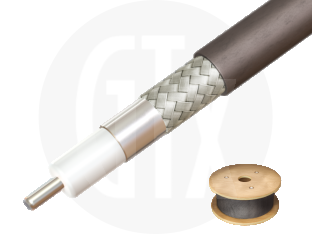

UHD75-M59-305

12G-SDI, 4K, Mini RG59 Digital Video Cable, 0.6/2.6, supplied on 305 metre drums

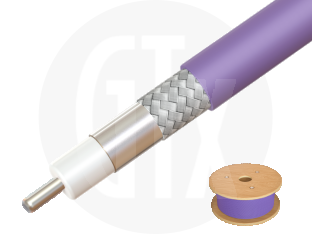

UHD75-M59-7-305

12G-SDI, 4K, Mini RG59 Digital Video Cable, 0.6/2.6, Violet Jacket, supplied on 305 metre drums

UHD75-M59XF-305

12G-SDI, 4K, RG59 Digital Video Cable, 0.6/2.6, TPE Jacket, supplied on 305 metre drums
