Coaxial Connector BN15-0519-C06 - BNC Crimp Plug, Nickel Plated, LBC400, Belden 9913, RA519

Browse for other connectors Configure in Cabulator

▣

Product Overview

Part Number

BN15-0519-C06

Series

BNC

Style

Plug - Straight

Description

BNC Crimp Plug, Nickel Plated, LBC400, Belden 9913, RA519

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	9.00mm
B =	0.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

2.95mm hex.

View tooling

10.90mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	106
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£5.42 each
10 off	£4.33 each
50 off	£3.94 each
100 off	£3.74 each
300 off	£3.56 each

▣

Order

UK stock	106
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£5.42 each
10 off	£4.33 each
50 off	£3.94 each
100 off	£3.74 each
300 off	£3.56 each

▣

Product Overview

Part Number

BN15-0519-C06

Series

BNC

Style

Plug - Straight

Description

BNC Crimp Plug, Nickel Plated, LBC400, Belden 9913, RA519

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	9.00mm
B =	0.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

2.95mm hex.

View tooling

10.90mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

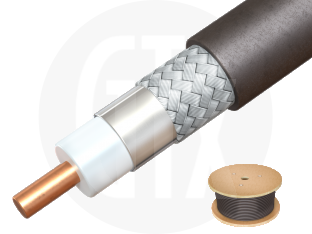

CX50-LBC400-30

LBC400 Low Loss Coaxial Cable, supplied on 30 metre drums

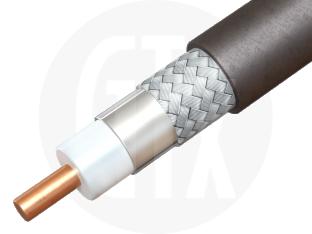

CX50-LBC400LSZH-30
