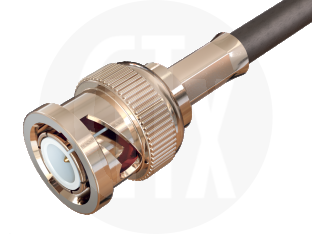

Coaxial Connector BN15-0223-C06 - BNC Crimp Plug, Nickel Plated, PTFE Dielectric, RG142, RG223, RG400

Browse for other connectors Configure in Cabulator

▣

Product Overview

Part Number

BN15-0223-C06

Series

BNC

Style

Plug - Straight

Description

BNC Crimp Plug, Nickel Plated, PTFE Dielectric, RG142, RG223, RG400

Primary Fixing

Crimp

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

4 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Brass, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	5.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

View tooling

5.41mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	2518
Pending (details)	358
Minimum order quantity	1

▣

Pricing

1 off	£2.55 each
10 off	£2.04 each
50 off	£1.86 each
100 off	£1.76 each
300 off	£1.68 each

▣

Order

UK stock	2518
Pending (details)	358
Minimum order quantity	1

▣

Pricing

1 off	£2.55 each
10 off	£2.04 each
50 off	£1.86 each
100 off	£1.76 each
300 off	£1.68 each

▣
