Product Overview

Part Number

BN15-0179-C06D-Z

Series

Style

Plug - Straight

Description

BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-179D, Belden 179DT

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Zinc Alloy, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Pin

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Crimp

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	7.10mm
B =	3.40mm
C =	3.80mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	27
Pending (details)	1000
Minimum order quantity	1

▣

Pricing

1 off	£3.42 each
10 off	£2.73 each
50 off	£2.48 each
100 off	£2.36 each
300 off	£2.25 each

▣

Order

UK stock	27
Pending (details)	1000
Minimum order quantity	1

▣

Pricing

1 off	£3.42 each
10 off	£2.73 each
50 off	£2.48 each
100 off	£2.36 each
300 off	£2.25 each

▣

Product Overview

Part Number

BN15-0179-C06D-Z

Series

Style

Plug - Straight

Description

BNC 12G SDI Crimp Plug, Nickel Plated, Gigatronix UHD75-179D, Belden 179DT

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

75 ohms

Interface Frequency

12 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-65 to +165 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Zinc Alloy, Nickel Plated

Dielectric

PTFE

Ferrule

Brass, Nickel Plated

Pin

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Contact Termination

Crimp

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	7.10mm
B =	3.40mm
C =	3.80mm

▣

Tooling

Crimp Die Sizes

1.07mm sq.

4.52mm hex.

▣

Documents

12G SDI 4K Connector Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

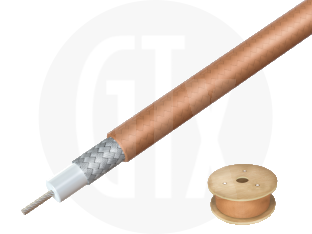

RG179 Coaxial Cable, supplied on 305 metre drums
