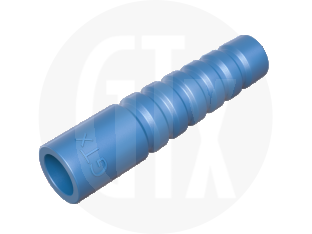

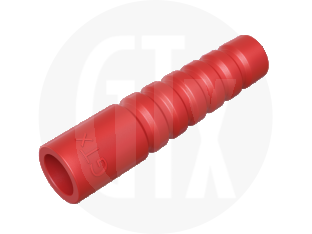

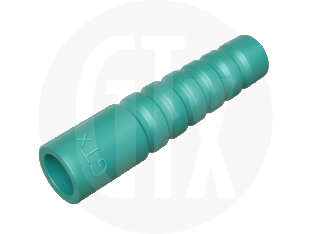

Strain Relief Boots

Log in / Sign up

Currency

Language

English, British

☰

Home

Cable Assemblies

Browse for other connectors Configure in Cabulator

▣

Product Overview

Part Number

BN15-0174-C06

Series

Style

Plug - Straight

Description

BNC Crimp Plug, Nickel Plated, Delrin Dielectric, RG174, RG316, LBC100

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

4 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Zinc Alloy, Nickel Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Pin

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	5.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

4.52mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

546-3585

Minor Variations

546-3620

Minor Variations

▣

Order

UK stock	782
Pending (details)	400
Minimum order quantity	1

▣

Pricing

1 off	£3.81 each
10 off	£3.04 each
50 off	£2.77 each
100 off	£2.63 each
300 off	£2.50 each

▣

Order

UK stock	782
Pending (details)	400
Minimum order quantity	1

▣

Pricing

1 off	£3.81 each
10 off	£3.04 each
50 off	£2.77 each
100 off	£2.63 each
300 off	£2.50 each

▣

Product Overview

Part Number

BN15-0174-C06

Series

Style

Plug - Straight

Description

BNC Crimp Plug, Nickel Plated, Delrin Dielectric, RG174, RG316, LBC100

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

4 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Coupling Nut

Zinc Alloy, Nickel Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Pin

Brass, Gold Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	5.00mm
C =	4.00mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

4.52mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

546-3585

Minor Variations

546-3620

Minor Variations

▣

Associated Products

◄

►

RG174 Coaxial Cable, supplied as a 30 metre coil

RG316 Coaxial Cable, supplied as a 30 metre coil

LBC100 Low Loss Coaxial Cable, supplied as a 30 metre coil

BNC Mounting Tool - Hand Tool for mating and unmating of BNC Plugs

▣

Alternatives

◄

►

BNC Crimp Plug, terminated on cable

BN15-0174-C06-1

BNC Crimp Plug, Nickel Plated, RG174, LBC100, RG316

BNC Crimp Plug, terminated on cable

BNC Crimp Plug, Integral Pin, Nickel Plated, PTFE Dielectric, RG174, LBC100, RG316

BNC Crimp Plug, terminated on cable

BNC Crimp Plug, Nickel Plated, Zinc Alloy Body, RG174, LBC100, RG316
