Product Overview

Part Number

BN10-0400-C06

Series

Style

Jack - Straight

Description

BNC Crimp Jack, Nickel Plated, RG142, RG223, RG400

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

4 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Contact

Brass, Gold Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	3.00mm
C =	3.00mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

5.41mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Order

UK stock	100
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£4.93 each
10 off	£3.94 each
50 off	£3.58 each
100 off	£3.40 each
300 off	£3.24 each

▣

Order

UK stock	100
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£4.93 each
10 off	£3.94 each
50 off	£3.58 each
100 off	£3.40 each
300 off	£3.24 each

▣

Product Overview

Part Number

BN10-0400-C06

Series

Style

Jack - Straight

Description

BNC Crimp Jack, Nickel Plated, RG142, RG223, RG400

Primary Fixing

▣

Specifications

Electrical

Dielectric Withstanding

1500 Volts RMS Maximum

Impedance

50 ohms

Interface Frequency

4 GHz

Working Voltage

500 Volts RMS Maximum

Environmental

RoHS Compliant

Yes

Temperature Range

-55 to +85 degrees C

Material

Body

Brass, Nickel Plated

Contact

Brass, Gold Plated

Dielectric

Delrin

Ferrule

Brass, Nickel Plated

Mechanical

Cable Retention

Equal to breaking strain of cable

Durability

500 mating cycles

Fixing Method

Crimp

▣

Cable Preparation

A =	8.00mm
B =	3.00mm
C =	3.00mm

▣

Tooling

Crimp Die Sizes

1.69mm hex.

5.41mm hex.

▣

Documents

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Associated Products

◄

►

RG142 Coaxial Cable, supplied as a 30 metre coil

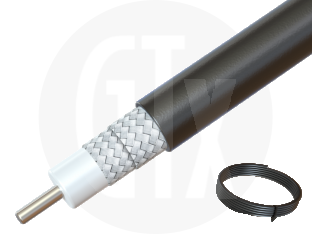

RG223 Coaxial Cable, supplied as a 30 metre coil
