0B | Plug - Straight | Solder / Clamp
Browse for other connectors
▣
Product Overview
Part Number
15B-0B-03-35
Series
0B
Style
Plug - Straight
Description
0B Cable Fixing Plug, 3 x Male Contacts, Chrome Plated. 2.5 to 3.5 mm Cable.
Primary Fixing
Solder / Clamp
▣
Specifications
Electrical
Contact Resistance
4.0 mOhm (After 1000 Mating Cycles)
Rated Current
8.0 Amp
Screening Continuity
3.5 mOhm (Body shell to shell)
Test Voltage
900 Volts
Environmental
IP Rating
IP50
Temperature Range
-45 to +125 degrees C
Material
Body
Brass, Matt Chrome Plated

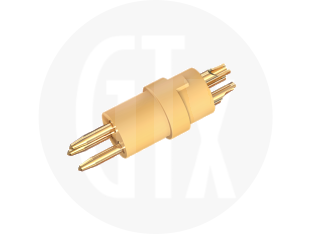

Contact Block
PPS
Contacts
Brass, Gold Plated
Mechanical
Contact Gender
Male
Durability
500 mating cycles
To Fit Cable Types
3 Core. Max Conductor 22AWG. Cable Jacket O.D 2.5-3.5mm
▣
Documents
Promotional Material
B Series Brochure
Conformance Document
Certificate of Conformance
Compliance Document
REACH Policy and Statement
Compliance Document
RoHS Certificate of Compliance
▣
Order
UK stock 66
Pending 0
Minimum order quantity 1
▣
Pricing
1 off £7.46 each
10 off £7.12 each
50 off £7.00 each
100 off £6.92 each
300 off £6.85 each
▣
Order
UK stock 66
Pending 0
Minimum order quantity 1
▣
Pricing
1 off £7.46 each
10 off £7.12 each
50 off £7.00 each
100 off £6.92 each
300 off £6.85 each
▣
