Multicore Connector 15A-00-04-35 - 00 Series Circular Push-Pull Cable Plug, 4 x Solder Male Contacts. 3.0 to 3.5mm cable

Browse for other connectors

▣

Product Overview

Part Number

15A-00-04-35

Series

Style

Plug - Straight

Description

00 Series Circular Push-Pull Cable Plug, 4 x Solder Male Contacts. 3.0 to 3.5mm cable

Primary Fixing

Solder / Clamp

▣

Specifications

Electrical

Contact Resistance

7.5 mOhm (After 1000 Mating Cycles)

Rated Current

2.0 Amp

Screening Continuity

3.5 mOhm (Body shell to shell)

Test Voltage

850 Volts

Environmental

IP Rating

IP50

Temperature Range

-45 to +125 degrees C

Material

Body

Brass, Matt Chrome Plated

Contact Block

PPS

Contacts

Brass, Gold Plated

Mechanical

Contact Termination

Solder

Durability

>5000 Mating Cycles

To Fit Cable Types

4 Core. Max Conductor 30AWG. Cable Jacket O.D 3.0-3.5mm

▣

Documents

B Series Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

1124-1016-ND

736-FGG00304CLAD35Z

FGG.00.304.CLAD35Z

S2CL0C-P04MCC0-3500

▣

Order

UK stock	0
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£11.11 each
10 off	£10.60 each
50 off	£10.41 each
100 off	£10.30 each
300 off	£10.20 each

▣

Order

UK stock	0
Pending	0
Minimum order quantity	1

▣

Pricing

1 off	£11.11 each
10 off	£10.60 each
50 off	£10.41 each
100 off	£10.30 each
300 off	£10.20 each

▣

Product Overview

Part Number

15A-00-04-35

Series

Style

Plug - Straight

Description

00 Series Circular Push-Pull Cable Plug, 4 x Solder Male Contacts. 3.0 to 3.5mm cable

Primary Fixing

Solder / Clamp

▣

Specifications

Electrical

Contact Resistance

7.5 mOhm (After 1000 Mating Cycles)

Rated Current

2.0 Amp

Screening Continuity

3.5 mOhm (Body shell to shell)

Test Voltage

850 Volts

Environmental

IP Rating

IP50

Temperature Range

-45 to +125 degrees C

Material

Body

Brass, Matt Chrome Plated

Contact Block

PPS

Contacts

Brass, Gold Plated

Mechanical

Contact Termination

Solder

Durability

>5000 Mating Cycles

To Fit Cable Types

4 Core. Max Conductor 30AWG. Cable Jacket O.D 3.0-3.5mm

▣

Documents

B Series Brochure

Certificate of Conformance

REACH Policy and Statement

RoHS Certificate of Compliance

▣

Competitor Cross Reference

Part Number

Compatibility

1124-1016-ND

736-FGG00304CLAD35Z

FGG.00.304.CLAD35Z

S2CL0C-P04MCC0-3500

▣

Associated Products

◄

►

BOD-15A-00

00 Series, Plug Housing only

COLLET-00-35

00 Series, Collet Type 35

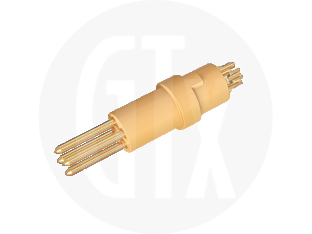

INS-00-4CON

00 Series, Contact Block, Male/Solder, 4 pole

NUT-15A-00

00 Series, Backnut - Suitable for use with Strain Relief Boot

SPA-00-A

00 Series, Split Insert Spacer, A

SPA-00-B

00 Series, Split Insert Spacer, B
