Products | Coaxial Cable | Part Number: CX50-213-30
Description

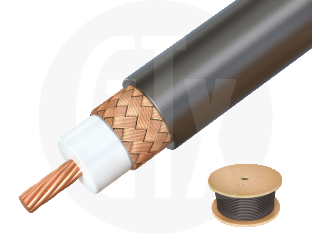

RG213 Coaxial Cable, supplied on 30 metre drums
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Recommended Frequency
DC to 1 GHz
Velocity Of Propagation
66%
Environmental
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Stranded Bare Copper
Overall Braid
Copper Clad Aluminium
Mechanical
Bending Radius Flexing
100mm
Bending Radius Static
50mm
Centre Conductor Diameter
7 x 0.75mm (2.29mm)
Dielectric Diameter
7.24mm
Outer Conductor 1 Diameter
8.13mm
| UK stock |
6 |
| Pending (details) |
0 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£57.31 each |
| 3 off |
£54.02 each |
| 5 off |
£49.42 each |
| 10 off |
£49.33 each |
| 30 off |
£49.28 each |
| UK stock |
6 |
| Pending (details) |
0 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£57.31 each |
| 3 off |
£54.02 each |
| 5 off |
£49.42 each |
| 10 off |
£49.33 each |
| 30 off |
£49.28 each |
Description
RG213 Coaxial Cable, supplied on 30 metre drums
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Recommended Frequency
DC to 1 GHz
Velocity Of Propagation
66%
Environmental
Temperature Range
-40 to +85 degrees C
Material
Centre Conductor
Stranded Bare Copper
Overall Braid
Copper Clad Aluminium
Mechanical
Bending Radius Flexing
100mm
Bending Radius Static
50mm
Centre Conductor Diameter
7 x 0.75mm (2.29mm)
Dielectric Diameter
7.24mm
Outer Conductor 1 Diameter
8.13mm
