Products | Coaxial Cable | Part Number: CX50-142-30
Description

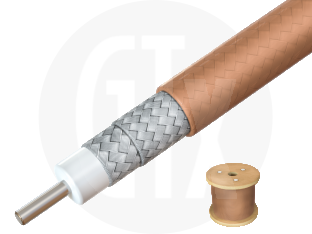

RG142 Coaxial Cable, supplied as a 30 metre coil
Electrical
Attenuation (dB/100m)
(K1 * √freq. (MHz) + (K2 * freq. (MHz))
Recommended Frequency
DC to 12 GHz
Velocity Of Propagation
69%
Environmental
Temperature Range
-55 to +200 degrees
Material
Centre Conductor
Silver Plated Copper Clad Steel
Outer Conductor
Silver Plated Copper Braid
Overall Braid
Silver Plated Copper
Mechanical
Bending Radius Flexing
50mm
Bending Radius Static
25mm
Centre Conductor Diameter
0.94mm
Dielectric Diameter
2.95mm
Outer Conductor 1 Diameter
3.50mm
Outer Conductor 2 Diameter
3.95mm
| UK stock |
64 |
| Pending |
0 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£287.60 each |
| 3 off |
£271.10 each |
| 5 off |
£247.99 each |
| 10 off |
£247.52 each |
| 30 off |
£247.29 each |
| UK stock |
64 |
| Pending |
0 |
| Minimum order quantity |
1 |
Length: 30
| 1 off |
£287.60 each |
| 3 off |
£271.10 each |
| 5 off |
£247.99 each |
| 10 off |
£247.52 each |
| 30 off |
£247.29 each |
